Cross Roller Bearing Hollow Rotating Actuator , IP54 Servo Rotary Indexing Table

Product Categories
Chuanhe Power Technology (Dongguan) Co.,Ltd
Contact Now

Cross Roller Bearing Hollow Rotating Actuator , IP54 Servo Rotary Indexing Table

Brand Name : CHE

Model Number : ZCM Series

Certification : RoSH, REACH, ISO9001:2015

Place of Origin : China

MOQ : 1 unit

Price : USD, RMB, EUR

Payment Terms : T/T, D/P, Western Union, MoneyGram

Supply Ability : As pre your request

Delivery Time : 3~7 working days for sample

Packaging Details : Cartoons with plastic bag and foam

Product Series : ZCM130, ZCM180

Bearing structure : Cross roller bearing

Positioning accuracy : ≤1arc/min

Protection level : IP54

Lubriication method : Long-term lubriction

Transmission effciency : 95%

Contact Now

Hollow Rotating Actuator Servo Rotary Indexing Table

What are the advantages of hollow rotary table?

1. Direct connection: Simple design enhances reliability.
2. Large-diameter hollow rotating platform: simple wiring and piping.
3. High positioning accuracy.
4. Short-time positioning: The inertial load positioning can be realized in a short time.
5. Simple return to origin: save the trouble of design and parts procurement.

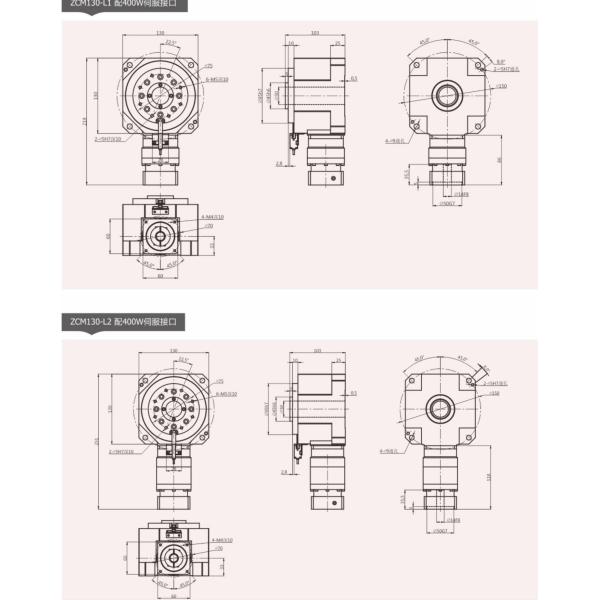

Model Unit ZCM130-L1 ZCM130-L2
Bearing structure Cross roller bearing
Reduction ratio I 15 21 30 60 75 105 120 150 210 300
Rated output torque N.m 50 40 30 50 50 50 50 50 40 30
Output torque N.m 3 times rated torque
Positioning accuracy arc-min ≤1 ≤3
Repeatedpositioning accuracy arc-sec ≤30 ≤60
Allowable disk speed rpm 200 intermittent operation
Adapt servo motor W 200-400
Suitable for stepping motor Nema 57 stepper motor
Allowable axial load N 5300
Allowable radial load N 5300
Design load Kg 30
Allowable moment of interia N.m 30
Torsional rigidity N.m/arcmin 28
Overturning moment N.m 520
Accuracy life h 20000h Intermittent operation
Protection level IP 54
Lubrication method Long-term lubrication
Instalation method Arbitary
Concentricity of rotating platform ≤0.01
Parallelism of rotating platform ≤0.01
Transmission efficiency % 95 90
Noise db ≤57 ≤57
Weight kg 6.2 6.8

Model Unit ZCM180-L1 ZCM180-L2
Bearing structure Cross roller bearing
Reduction ratio I 15 21 30 60 75 105 120 150 210 300
Rated output torque N.m 130 110 60 130 130 130 130 130 110 60
Output torque N.m 3 times rated torque
Positioning accuracy arc-min ≤1 ≤3
Repeatedpositioning accuracy arc-sec ≤30 ≤60
Allowable disk speed rpm 200 intermittent operation
Adapt servo motor W 750
Suitable for stepping motor Nema 86 stepper motor
Allowable axial load N 8500
Allowable radial load N 8500
Design load Kg 60
Allowable moment of interia N.m 60
Torsional rigidity N.m/arcmin 50
Overturning moment N.m 1230
Accuracy life h 20000h Intermittent operation
Protection level IP 54
Lubrication method Long-term lubrication
Instalation method Arbitary
Concentricity of rotating platform ≤0.01
Parallelism of rotating platform ≤0.01
Transmission efficiency % 95 90
Noise db ≤63 ≤63
Weight kg 16 17.6

Cross Roller Bearing Hollow Rotating Actuator , IP54 Servo Rotary Indexing Table

Cross Roller Bearing Hollow Rotating Actuator , IP54 Servo Rotary Indexing Table

Cross Roller Bearing Hollow Rotating Actuator , IP54 Servo Rotary Indexing Table
